Stainless steel wire mesh is widely used in chemical processing, marine environments, food production, pharmaceutical filtration, and oil & gas systems. One of its most critical performance advantages is corrosion resistance.
However, stainless steel is not “rust-proof” by default. Its corrosion resistance is the result of specific metallurgical composition, passive film formation, alloying elements, and environmental interaction.
This article explains the scientific mechanisms behind stainless steel wire mesh corrosion resistance and how to select the right grade for demanding industrial applications.
1. What Makes Stainless Steel “Stainless”?
The primary element responsible for corrosion resistance is chromium (Cr).
The Passive Layer Mechanism
When stainless steel contains at least 10.5% chromium, it forms a thin, invisible oxide film on the surface:
- Chromium reacts with oxygen
- Forms chromium oxide (Cr₂O₃)
- Creates a self-healing passive layer
This passive film:
- Blocks moisture and oxygen from penetrating the metal
- Prevents iron oxidation (rust formation)
- Automatically reforms if scratched (in the presence of oxygen)
This is the fundamental reason stainless steel wire mesh resists corrosion in many industrial environments.
2. Role of Alloying Elements
Different stainless steel grades achieve varying corrosion resistance by adding specific alloying elements.
Chromium (Cr)
- Forms protective passive layer
- Improves oxidation resistance at high temperature
Nickel (Ni)
- Enhances ductility and toughness
- Improves resistance to acidic environments
Molybdenum (Mo)
- Increases resistance to pitting corrosion
- Essential in chloride-rich environments (e.g., seawater)
Carbon (C)
- Affects strength and weldability
- Lower carbon grades (like 316L) reduce carbide precipitation and intergranular corrosion
3. Comparing Common Stainless Steel Grades
304 Stainless Steel
- ~18% Cr, ~8% Ni
- Good general corrosion resistance
- Suitable for indoor or mild environments
- Limited resistance to chlorides
316 Stainless Steel
- Contains molybdenum (2–3%)
- Superior resistance to chlorides and acids
- Preferred for marine and chemical applications
316L Stainless Steel
- Lower carbon version of 316
- Better weld corrosion resistance
- Ideal for high-temperature and pressure filtration systems
Duplex Stainless Steel
- Mixed austenitic-ferritic structure
- Higher strength
- Excellent resistance to stress corrosion cracking
- Common in offshore and oil & gas environments
4. Types of Corrosion in Wire Mesh Applications
Understanding corrosion types helps select the correct material.
4.1 Uniform Corrosion
Even material loss across the surface. Usually manageable in mild environments.
4.2 Pitting Corrosion
Localized attack forming small holes. Common in chloride-rich environments.
- 316 and Duplex grades perform better due to molybdenum.
4.3 Crevice Corrosion
Occurs in tight gaps where oxygen is limited (e.g., layered screen packs).
Proper cleaning and design minimize this risk.
4.4 Intergranular Corrosion
Occurs along grain boundaries due to carbide precipitation.
Low-carbon grades like 316L reduce this risk.
4.5 Stress Corrosion Cracking (SCC)
Caused by tensile stress + corrosive environment.
Duplex stainless steels provide better resistance.
5. Environmental Factors Affecting Corrosion Resistance
Corrosion performance depends heavily on process conditions:
- Chloride concentration
- pH level
- Temperature
- Pressure
- Oxygen availability
- Flow velocity
For example:
- High temperature accelerates corrosion reactions.
- Low oxygen environments may prevent passive film regeneration.
- High flow rates can erode the protective layer.
Industrial selection must consider real operating parameters—not just material grade.
6. Why Surface Finish Matters
Wire mesh surface condition affects corrosion resistance.
Electropolishing
- Removes surface impurities
- Enhances passive layer uniformity
- Improves cleanability (important in food and pharma industries)
Annealing
- Relieves internal stress
- Reduces risk of stress corrosion cracking
High-quality surface finishing significantly improves long-term durability.
7. Corrosion Resistance in Woven Wire Mesh vs Welded Mesh

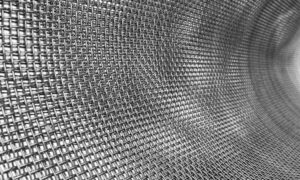

- Woven mesh: Minimal heat-affected zones; better corrosion stability.
- Welded mesh: Weld points may reduce corrosion resistance unless properly treated.
For critical filtration applications, woven stainless steel mesh is often preferred.
8. Standards and Corrosion Testing
Industrial buyers often require compliance with:
- Salt spray testing
- Pitting resistance equivalent number (PREN)
- Material certificates (3.1 EN standards for Europe)
- ASTM and ISO material specifications
Higher PREN values indicate better pitting resistance (important for marine use).
9. Practical Selection Guide
| Environment | Recommended Grade |
|---|---|
| Indoor / Mild | 304 |
| Food Processing | 304 or 316 |
| Marine / Chloride | 316 or Duplex |
| Chemical Processing | 316L |
| High Temperature | 316L or specialty alloys |
| Offshore / Oil & Gas | Duplex or Super Duplex |
10. Key Takeaways
Stainless steel wire mesh corrosion resistance depends on:
- Chromium-based passive layer formation
- Alloy composition (Ni, Mo, Cr content)
- Surface treatment and finish
- Environmental conditions
- Mechanical stress and operating temperature
Selecting the correct grade ensures:
- Longer service life
- Reduced maintenance costs
- Stable filtration performance
- Compliance with industrial standards
Understanding the science behind corrosion resistance allows engineers and procurement managers to make technically sound material decisions for demanding industrial environments.
