Wedge Wire Rotary Drum Screens
High-Performance Wedge Wire Rotary Drum Screens: Precision Solid-Liquid Separation
Our Wedge Wire Rotary Drum Screens are engineered for high-capacity industrial filtration and municipal wastewater pre-treatment. By combining the non-clogging technology of V-profile wedge wire with a continuous rotating drum, these screens deliver exceptional solids recovery and liquid clarification. Whether you need an Internally Fed or Externally Fed configuration, our rotary screens provide a low-maintenance, energy-efficient solution for your most demanding processing environments.
Advantages of Wedge Wire Rotary Drum Screens
1. Superior Self-Cleaning Design
The V-shaped wire profile creates an opening that widens inwardly. This ensures that particles only touch two points of the screen, allowing them to pass through or be easily washed away. Integrated internal spray headers provide continuous backwashing to maintain 100% filtration efficiency.
2. High Throughput & Low Pressure Drop
The continuous slot design of wedge wire provides a significantly higher open area compared to perforated plates or mesh. This allows for massive flow rates with minimal head loss, reducing the overall energy consumption of your pump systems.
3. Rugged 304/316L Stainless Steel Construction
Built to survive corrosive environments, our drums are resistant to chemicals, heat, and abrasion. The resistance-welded structure offers superior mechanical strength, handling heavy solid loads without deforming.
4. Low Operational Costs
With few moving parts and a heavy-duty drive system (typically utilizing a gear motor and chain or friction drive), our rotary screens require minimal supervision and have lower spare-part requirements than traditional belt filters.
Specification of Wedge Wire Rotary Drum Screens
| Feature | Details |
| Material | Stainless Steel 304, 316, 316L, or Duplex Steel |
| Slot Sizes (Aperture) | 0.1 mm to 6.0 mm (Customizable) |
| Drum Diameter | 300 mm up to 2500 mm |
| Drum Length | 500 mm up to 6000 mm |
| Flow Direction | Internally Fed (Inside-to-Out) or Externally Fed (Outside-to-In) |
| Rotation Speed | Variable Frequency Drive (VFD) controlled, typically 1–10 RPM |
| Cleaning System | Automatic Spray Bar (High-pressure nozzles) and/or Scraper Blade |
| Drive Options | Direct Drive, Chain Drive, or Friction/Trunnion Drive |
Types of Wedge Wire Rotary Drum Screens

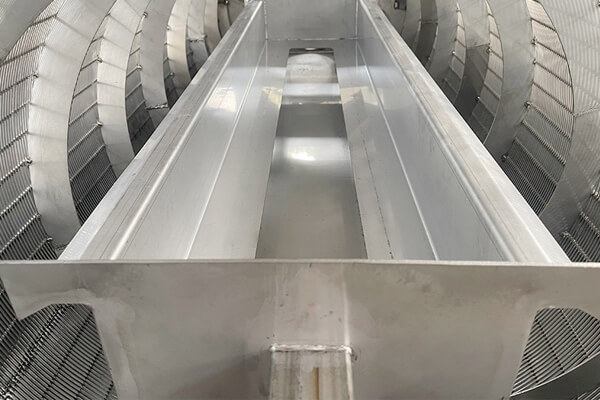

Internally Fed Drum Screens
Best for high-flow wastewater with low to medium solids. The liquid enters the inside of the drum and passes through the screen, while solids are conveyed forward to the discharge.
Externally Fed Drum Screens
Ideal for applications with high solids or oily/greasy waste. The influent is fed onto the outside of the drum; solids stay on the surface and are scraped off, while the liquid passes through.
Applications of Wedge Wire Rotary Drum Screens
- Water Treatment: Used to separate suspended solids from water in municipal and industrial wastewater treatment plants.
- Food Processing: Ideal for filtering liquids in food production, such as juices, broths, and washing systems.
- Pulp and Paper: Used in the pulp washing process to separate solid debris from water.
- Mining: Can be used for tailings management and wastewater filtration in mining operations.
- Chemical Processing: Filters out solids from various chemical processes, helping to maintain the purity of the final product.
