Wedge Wire Screen Filters and Components
Wedge Wire Screen Filters & Components | Industrial Filtration Solutions
Wedge Wire Screen Filters and Components are precision-engineered filtration and separation solutions widely used in water treatment, mining, oil & gas, chemical processing, food & beverage, pulp & paper, and other industrial sectors. Manufactured from profiled wedge-shaped wire and support rods through resistance welding, these products provide accurate slot openings, excellent mechanical strength, and superior flow performance.
Compared with conventional woven wire mesh or perforated plates, wedge wire screens offer non-clogging surface characteristics, high open area, and long service life under demanding operating conditions. At PFM SCREEN, we supply a comprehensive range of wedge wire screen filters and custom-fabricated components designed to meet specific process, flow rate, pressure, and filtration accuracy requirements.
Wedge Wire Screen Filters and Components Product Options
PFM SCREEN offers a full portfolio of wedge wire screen filters and components, covering both standard and custom-engineered solutions:
Wedge Wire Screen Basket
Used in extrusion, polymer filtration, and industrial liquid filtration systems for fine particle removal and melt filtration.

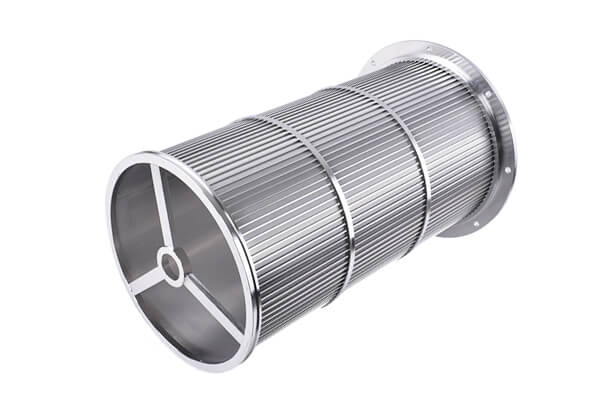

Wedge Wire Rotary Drum Screen
Designed for continuous solid-liquid separation in wastewater treatment, industrial effluent treatment, and process water filtration.

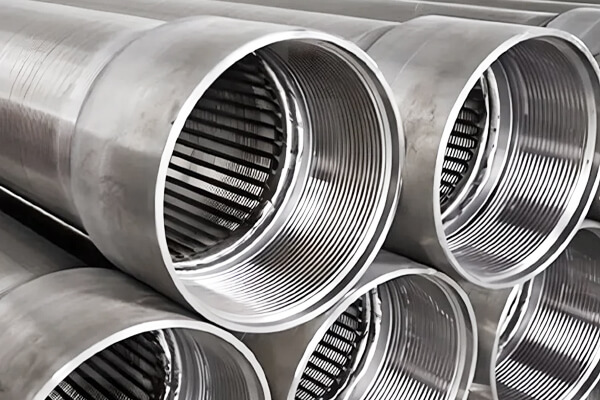

Wedge Wire Water Well Screen
Applied in groundwater extraction, irrigation wells, municipal water supply, and geothermal wells to prevent sand ingress while maintaining high water yield.

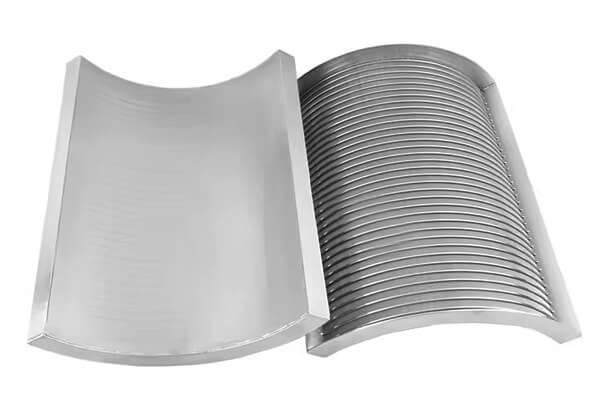

Wedge Wire Sieve Bend Screen
Curved static screens commonly used in coal preparation plants, mineral processing, starch processing, and wastewater treatment for efficient dewatering and classification.

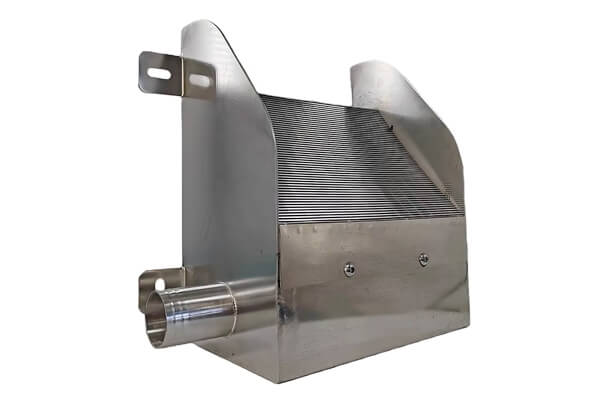

Coanda Intake Screen and Box
Self-cleaning wedge wire intake screens for surface water abstraction from rivers, lakes, and canals, minimizing debris and aquatic life entrainment.

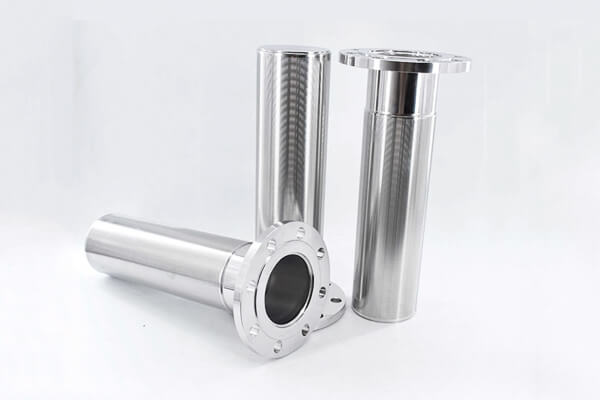

Wedge Wire Resin Traps
Installed in ion exchange systems to retain resin beads while allowing unrestricted flow of process fluids.
Wedge Wire Lateral Assemblies
Underdrain and distribution systems for pressure filters, gravity filters, and media filtration units.

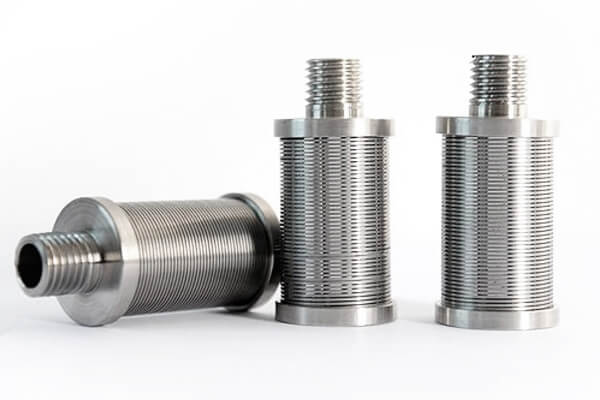

Wedge Wire Filter Nozzles
Used in water treatment filters, sand filters, and resin beds for uniform flow distribution and reliable media retention.

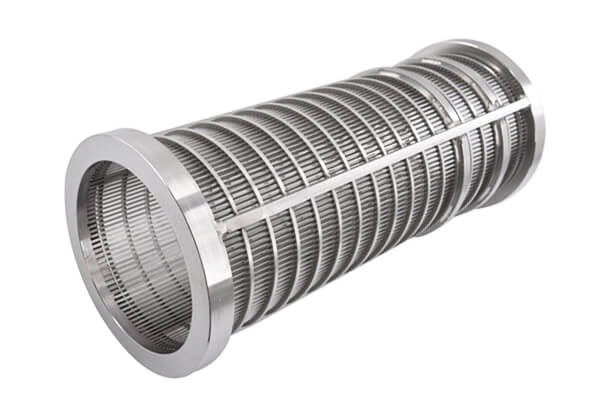

Wedge Wire Screen Cylinders
Cylindrical wedge wire elements for filtration, separation, and retention applications in industrial process equipment.
All products can be manufactured according to customer drawings or operating parameters, including slot size, diameter, length, material grade, and end connections.
Advantages of PFM SCREEN's Wedge Wire Screen Filters and Components
Wedge Wire Screen Filters and Components offer multiple technical and operational advantages:
- Accurate and Consistent Slot Openings
Precise slot control ensures reliable filtration performance and repeatable results. - Non-Clogging Design
V-shaped wire profile allows particles to pass through smoothly, reducing blinding and maintenance frequency. - High Open Area
Optimized flow paths deliver higher throughput and lower pressure drop compared to traditional filter media. - Exceptional Mechanical Strength
Resistance-welded construction withstands high pressure, heavy loads, and abrasive environments. - Wide Material Selection
Available in stainless steel (304, 316L), duplex steel, nickel alloys, and other corrosion-resistant materials. - Long Service Life
Robust construction and wear resistance reduce replacement costs and downtime. - Custom Engineering Capability
Designs tailored to specific applications, operating conditions, and international standards.
Applications of Wedge Wire Screen Filters and Components
PFM SCREEN Wedge Wire Screen Filters and Components are widely used across multiple industries, including:
- Water and wastewater treatment plants
- Groundwater wells and irrigation systems
- Industrial process filtration
- Mining and mineral processing
- Oil & gas and petrochemical industries
- Chemical and pharmaceutical processing
- Pulp and paper production
- Food, beverage, and starch processing
- Power generation and cooling water intake systems
Their versatility makes them suitable for filtration, separation, dewatering, intake protection, and flow distribution applications.
Why Choose PFM SCREEN's Wedge Wire Screen Filters and Components
Wedge Wire Screen Filters and Components offer multiple technical and operational advantages:
- Accurate and Consistent Slot Openings
Precise slot control ensures reliable filtration performance and repeatable results. - Non-Clogging Design
V-shaped wire profile allows particles to pass through smoothly, reducing blinding and maintenance frequency. - High Open Area
Optimized flow paths deliver higher throughput and lower pressure drop compared to traditional filter media. - Exceptional Mechanical Strength
Resistance-welded construction withstands high pressure, heavy loads, and abrasive environments. - Wide Material Selection
Available in stainless steel (304, 316L), duplex steel, nickel alloys, and other corrosion-resistant materials. - Long Service Life
Robust construction and wear resistance reduce replacement costs and downtime. - Custom Engineering Capability
Designs tailored to specific applications, operating conditions, and international standards.
